High-strength 2-bolt pipe clamps from a leading China factory. Our professional suppliers provide UL and FM approved suspension solutions for industrial piping, offering extreme temperature resistance up to 750F and superior corrosion protection.
Share:

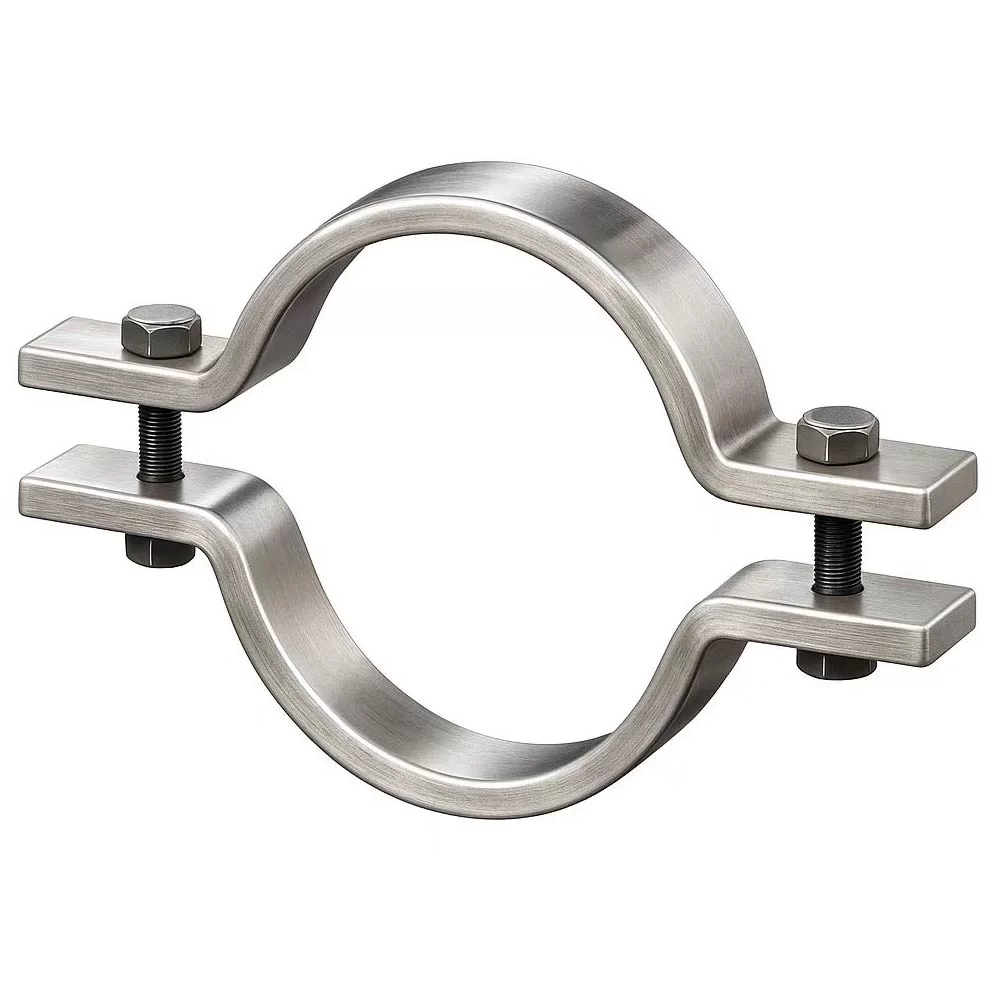

The 2 Bolt Pipe Clamp is a professional-grade industrial suspension solution engineered for the secure fixation of pipeline systems. Designed for maximum stability and structural integrity, this clamp serves as a critical connector for both cold and hot pipelines that do not require insulation, ensuring zero displacement during operational loads.
Constructed from high-strength carbon steel and available in multiple protective finishes, these clamps offer an expansive size range from 1/2" to 30". By adhering to rigorous federal and industry standards, including UL, ULC, and FM approvals, our pipe clamps provide an unmatched balance of safety, temperature resistance, and corrosion protection for demanding industrial environments.
| Size Range | 1/2" to 30" | Body Material | High-Strength Carbon Steel |
|---|---|---|---|
| Finish Options | Plain or Hot-Dip Galvanized | Fastener Finish | Zinc-Plated Bolts and Nuts |
| Max Temp (Plain) | 750°F | Max Temp (Galvanized) | 450°F |
| Federal Specs | A-A-1192A (Type 4), WW-H-171-E (Type 4) | Industry Standards | ANSI/MSS SP-69, MSS SP-58 (Type 4) |
| Certifications | UL, ULC listings and FM approval (3/4" to 8") | Installation Match | Compatible with Fig. 290 weldless eye nut/rod |
Optimized structural design ensures tight gripping of pipes to prevent any displacement during suspension.
Capable of withstanding up to 750°F in plain finish, ideal for high-temperature industrial piping.
Full compliance with ANSI, MSS, and FM standards for mission-critical infrastructure safety.
Hot-dip galvanized options and zinc-plated hardware prevent rust in humid environments.
Precision gap engineering facilitates faster installation and ensures consistent performance across sizes.
Comprehensive size coverage from 1/2" to 30" allows for seamless integration into any pipe network.
Real-time tracking of all size ranges from 1/2" to 30" to ensure project continuity.
Strict adherence to MSS SP-58 and SP-69 standards through rigorous batch testing.
Streamlined ordering based on pipe size, figure number, and finish selection.
Digital certification management for UL, ULC, and FM approved components.
Specialized platform for Nuclear-Grade version requests and custom dimension orders.
Optimized shipping for heavy-duty carbon steel hardware to minimize lead times.
| Feature Aspect | Standard Clamps | Our Professional 2-Bolt Clamp |
|---|---|---|
| Service Life | Low to Medium | High (due to Galvanized/Steel grade) |
| Installation Speed | Slow/Manual Fit | Fast (Equal Gap Design) |
| Safety Compliance | Basic Industry Std | UL, ULC, FM, Federal Specs |
| Temp. Threshold | Limited | Up to 750°F (Plain Finish) |
| Maintenance Cost | Frequent Replacement | Ultra-Low / Long-term stability |
Plain finish is designed for higher temperature environments (up to 750°F), while hot-dip galvanized finish provides superior corrosion resistance for outdoor or humid environments, with a temperature limit of 450°F.
The 2 Bolt Pipe Clamp is specifically recommended for the suspension of cold or hot pipelines that do NOT require insulation.
Sizes from 3/4" to 8" have obtained UL and ULC listings, as well as FM approval. They also comply with ANSI/MSS SP-69 and MSS SP-58 (Type 4).
Yes, Nuclear-Grade versions are available through custom orders to meet the strict regulatory requirements of nuclear facilities.
The "C" gap ensures sufficient clearance at the top attachment point, allowing for the easy installation of weldless eye nuts or other appropriate rod attachments.
Regardless of the body finish (Plain or Galvanized), the clamps are equipped with zinc-plated bolts and nuts to ensure enhanced corrosion resistance for the fasteners.
